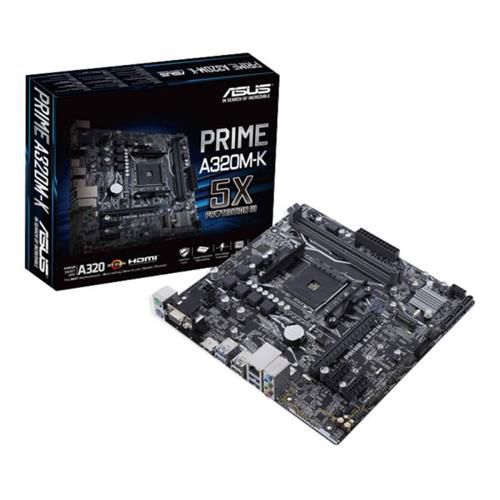

PLACA MAE ASUS PRIME A320M-K/BR DDR4 AM4 AMD RYZEN

Código: 1309 Marca:

Para mais informações entre em contato conosco através do telefone (47) 3035-2345 ou através do Fale Conosco

Comprar Estoque: 1 dia útil
  • Processador(es)
    AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors Supports CPU up to 8 cores* Refer to www.asus.com for CPU support list
  • Chipset
    AMD A320
  • Memória
    AMD Ryzen™ Processors2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory AMD 7th Generation A-series/Athlon™ Processors2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Gráfico
    Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *1Multi-VGA output support : HDMI/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz- Supports RGB with max. resolution 1920 x 1200 @ 60 HzMaximum shared memory of 2048 MB
  • Slots de expansão
    AMD Ryzen™ Processors1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors1 x PCIe 3.0/2.0 x16 (x8 mode) AMD A320 chipset2 x PCIe 2.0 x1
  • Armazenamento
    AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
  • LAN
    Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  • Áudio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
  • Portas USB
    AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)AMD A320 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board)AMD A320 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
  • Recursos especiais
    ASUS 5X Protection III :- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: 6 Phase digital power designASUS Exclusive Features :- AI Suite 3- Ai Charger ASUS Quiet Thermal Solution :- Stylish Fanless Design Heat-sink solution- ASUS Fan Xpert ASUS EZ DIY :- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode- Multi-language BIOSASUS Q-Design :- ASUS Q-Slot- ASUS Q-DIMM
  • Sistema operacional suportado
    Windows® 10 , 64bit
  • Portas no painel Traseiro
    1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s)
  • Painel Interno
    1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) 1 x Clear CMOS jumper(s)1 x Speaker connector
  • Acessórios
    User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
  • Sistema Operacional
    Windows® 10 64-bit
  • Formato
    mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

Para mais informações entre em contato conosco através do telefone (47) 3035-2345 ou através do Fale Conosco

Comprar Estoque: 1 dia útil
